GOOZEEZOO 2025 Upgraded HW V0.5.4 TinySA Ultra+ZS407 Spectrum Analyzer, 4-inch 100kHz-7.3GHz Frequency Analyzer 2-in-1 Signal Generator 100kHz to 900MHz MF/HF/VHF UHF Input 5000mAh Battery & 32GB SD Card

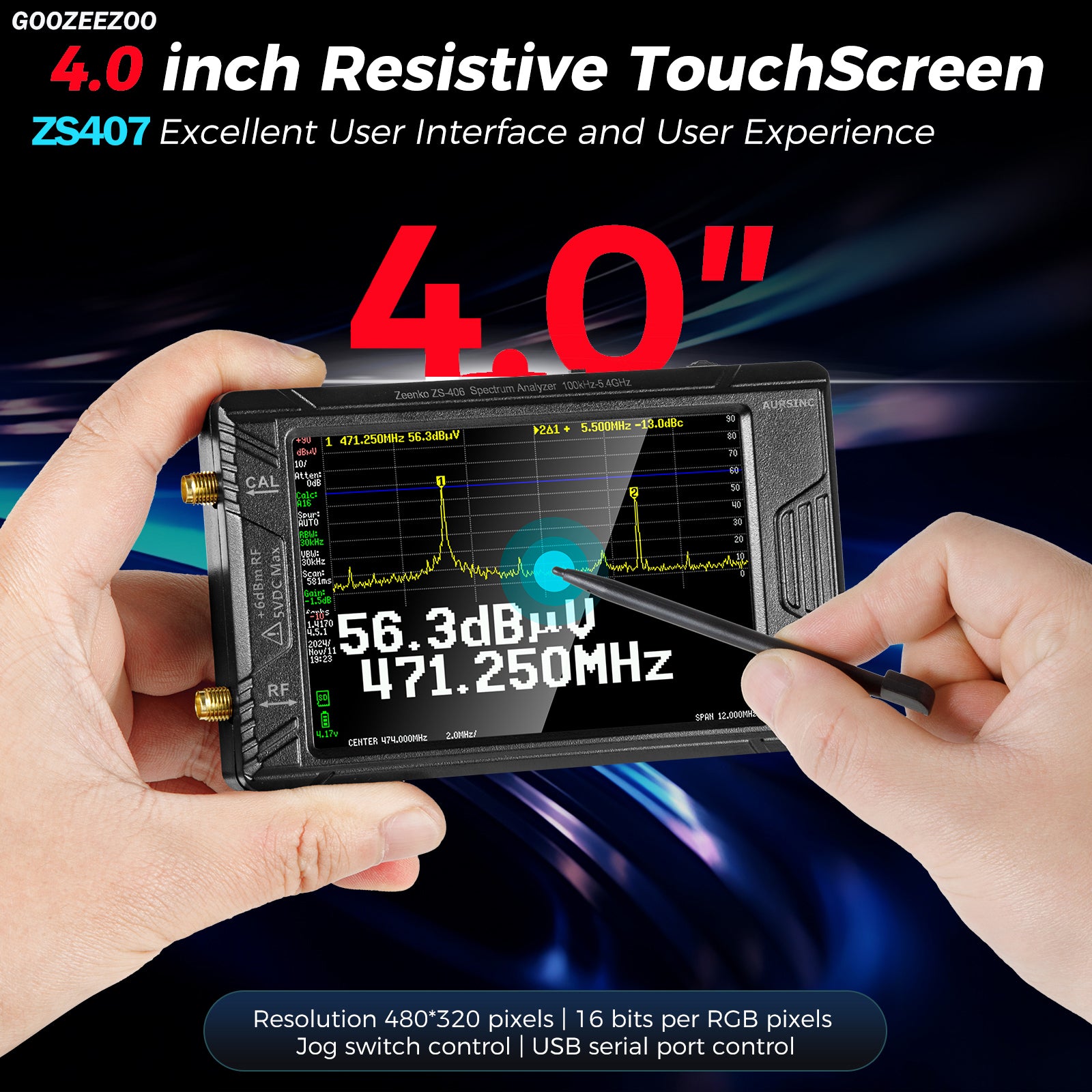

GOOZEEZOO Tinysa Ultra + ZS407 Spectrum Analyzer: TinySA Ultra+ ZS407 Spectrum Analyzer features an extensive frequency range of 100kHz to 7.3GHz. This expansion allows for precise capture and analysis of a wider spectrum of signals. The 4” IPS-TFT LCD (480×320) display can showcase up to 450 data points per scan, vividly revealing signal intricacies and measurement outcomes. Additionally, it supports PC control, facilitating effortless data transfer and in-depth analysis

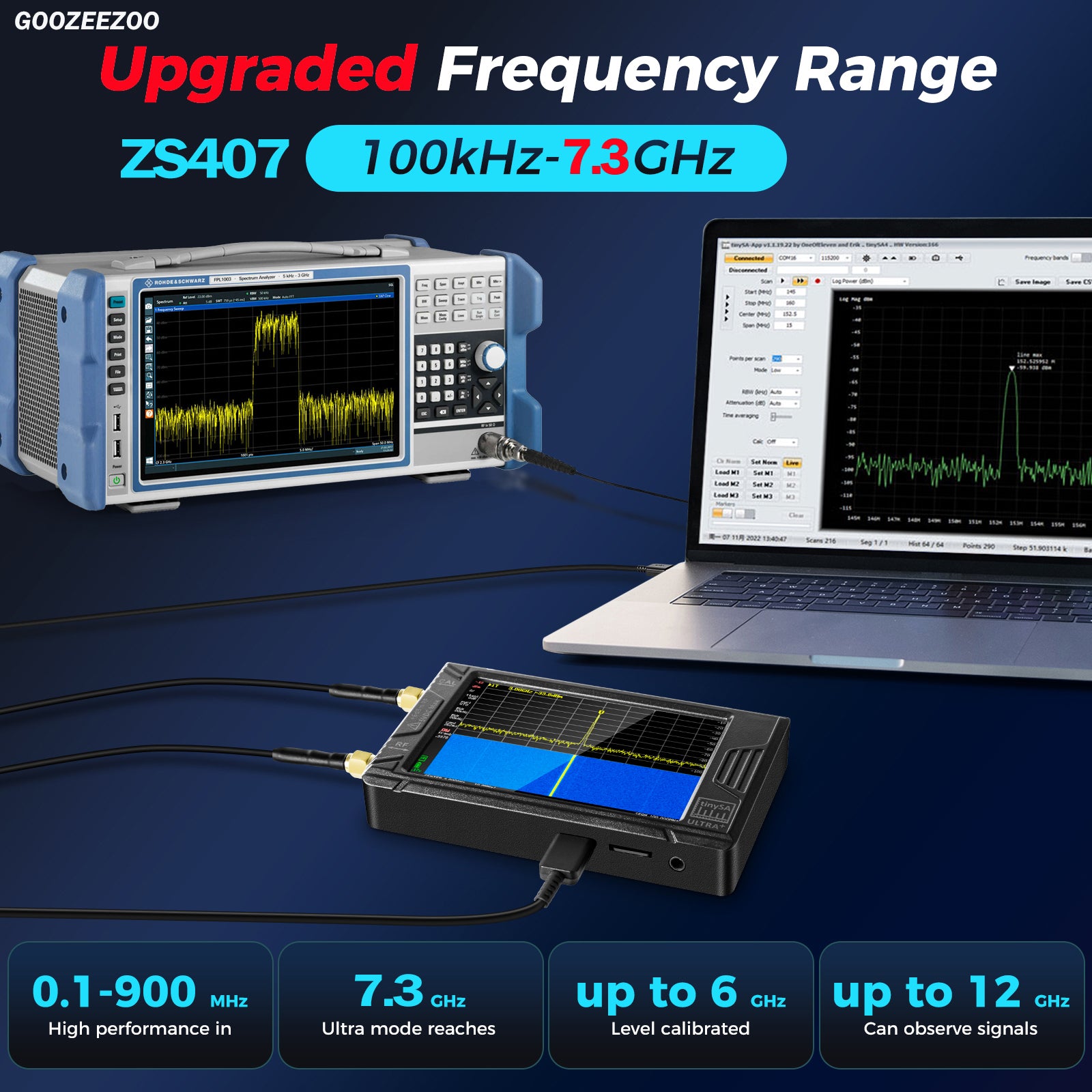

Ultra-Wide Frequency Range: Unlike the previous TinySA Ultra, which operated at 100KHz-5.3GHz, the upgraded GOOZEEZOO TinySA Ultra+ZS407 now features an enhanced frequency range of 100KHz-7.3GHz, covering a broad spectrum for precise signal capture and analysis. This upgrade ensures accurate measurements across various complex RF testing scenarios

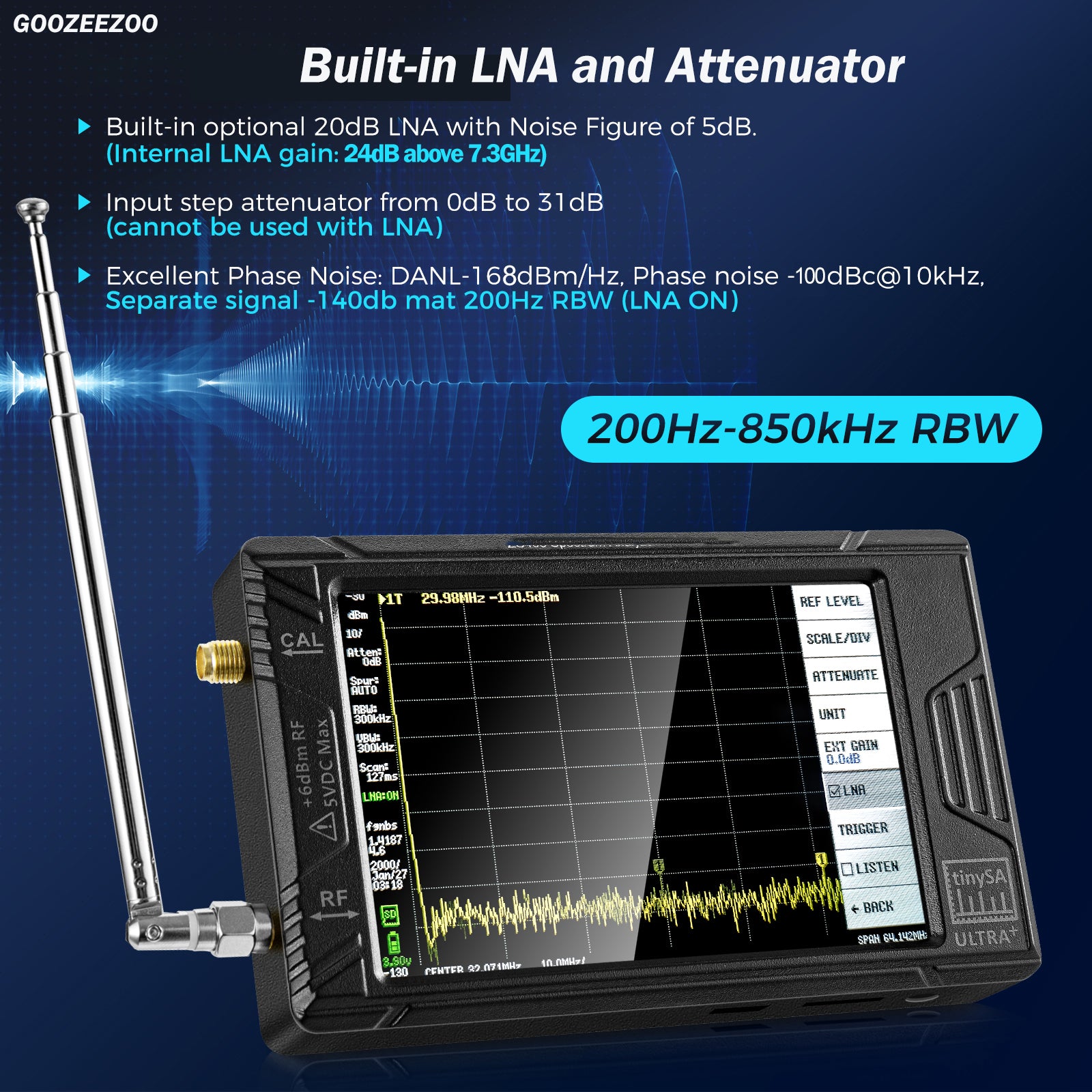

High-Gain Low-Noise Amplifier (LNA): Featuring an internal LNA gain of up to 20dB at 7.3GHz and a DANL as low as -169dBm/Hz at 100MHz, this amplifier effectively boosts weak signal reception and minimizes noise interference for accurate measurements

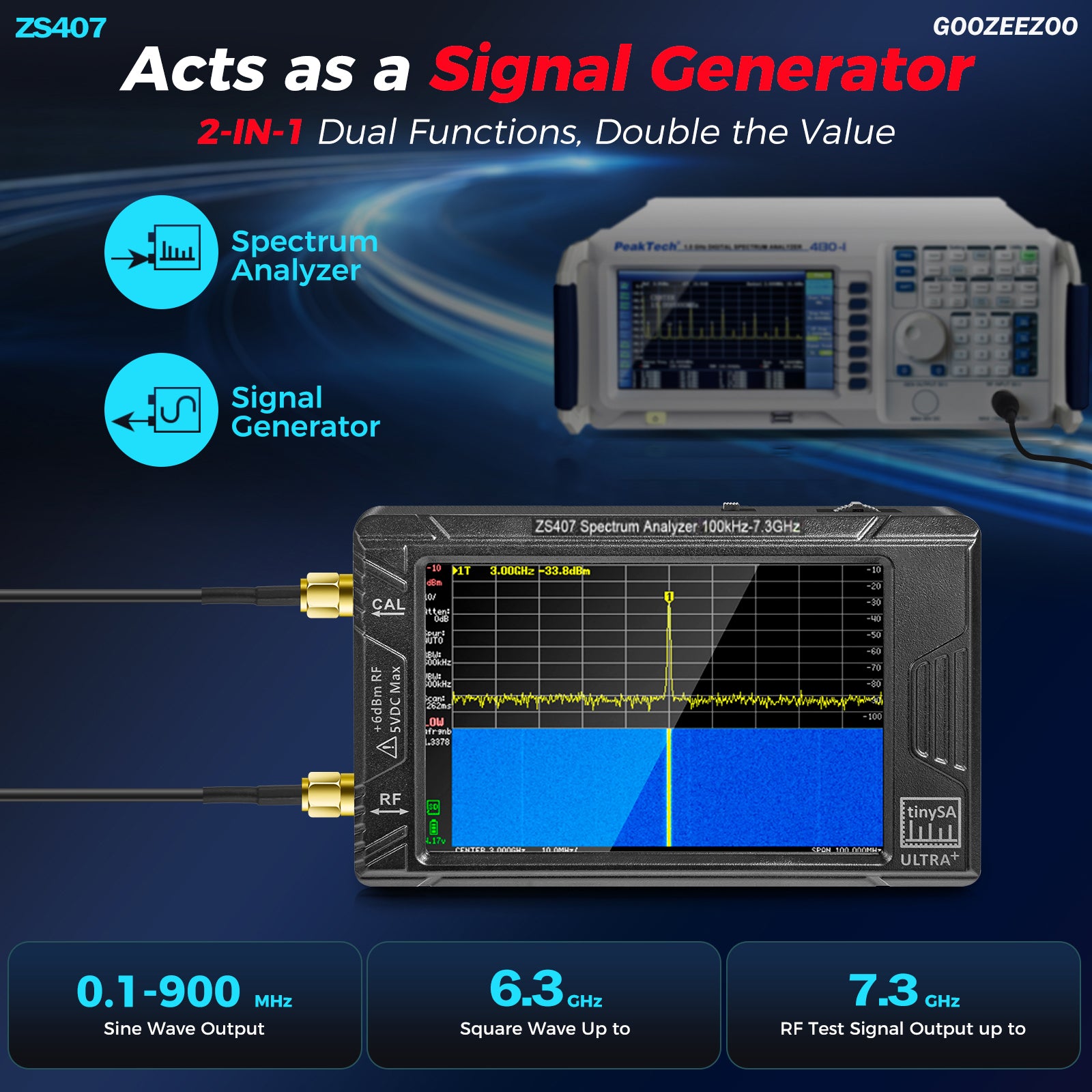

2-in-1 Signal Generator: GOOZEEZOO Spectrum Analyzer boasts a powerful signal generation capability, producing MF/HF/VHF sinusoidal outputs from 100kHz to 900MHz, UHF square waves from 900MHz to 6.3GHz, and mixed signals from 6.3GHz to 7.3GHz. This wide frequency range and diverse signal types enhance its versatility for various testing scenarios

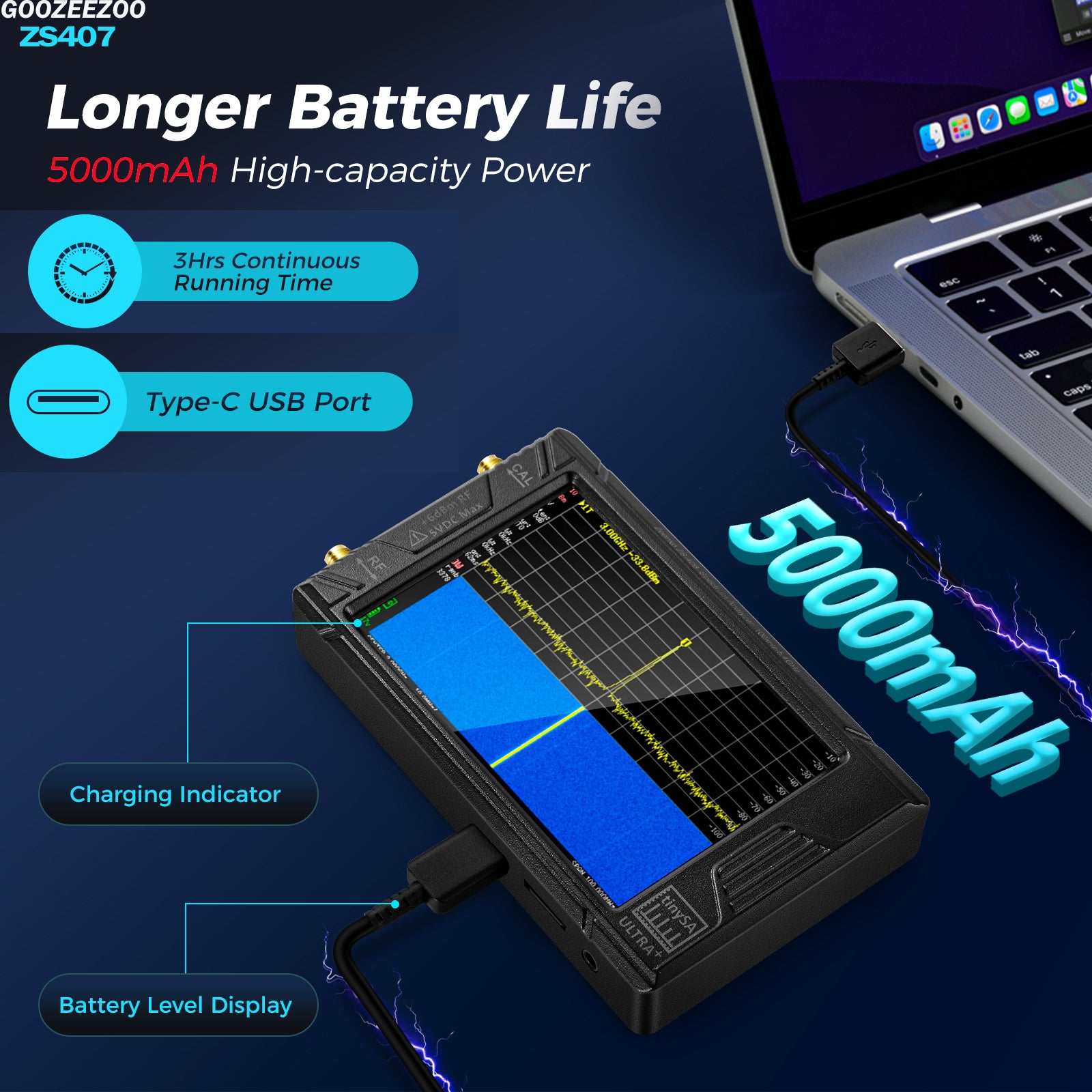

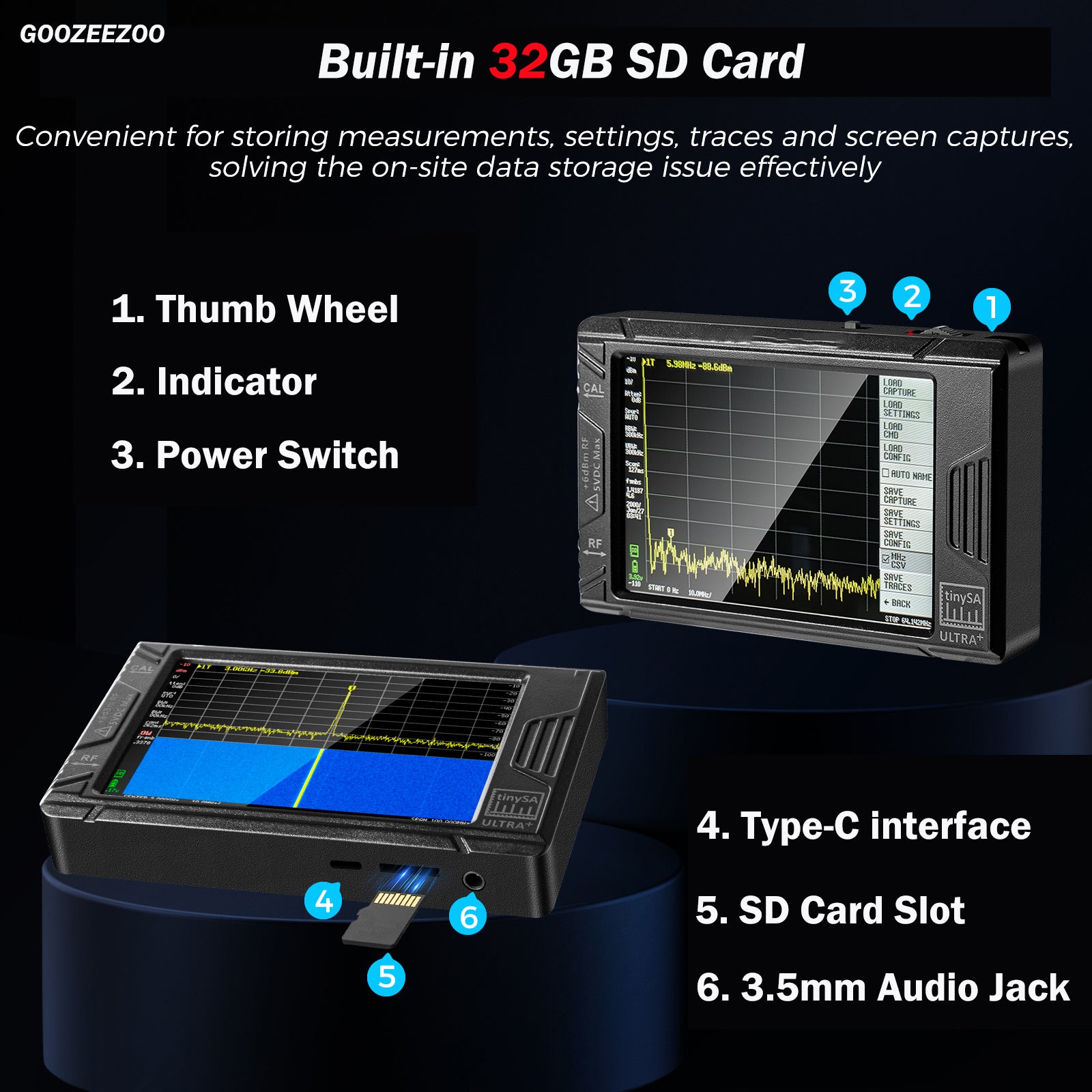

Extended Battery Life: The built-in 3.7V 5000mAh Li-polymer battery significantly extends operational time, making it ideal for continuous testing or outdoor use. It reduces the need for frequent charging, thus enhancing work efficiency. Built-in 32GB micro SD card, addressing on-site data storage challenges

Excellent Phase Noise Performance: With phase noise levels of -100dBc/Hz at a 10kHz offset and -103dBc/Hz at a 100kHz offset, this spectrum analyzer ensures high signal purity. This is essential for precise analysis of signal frequency stability and spectral purity, crucial for high-precision RF measurement and communication system performance evaluation

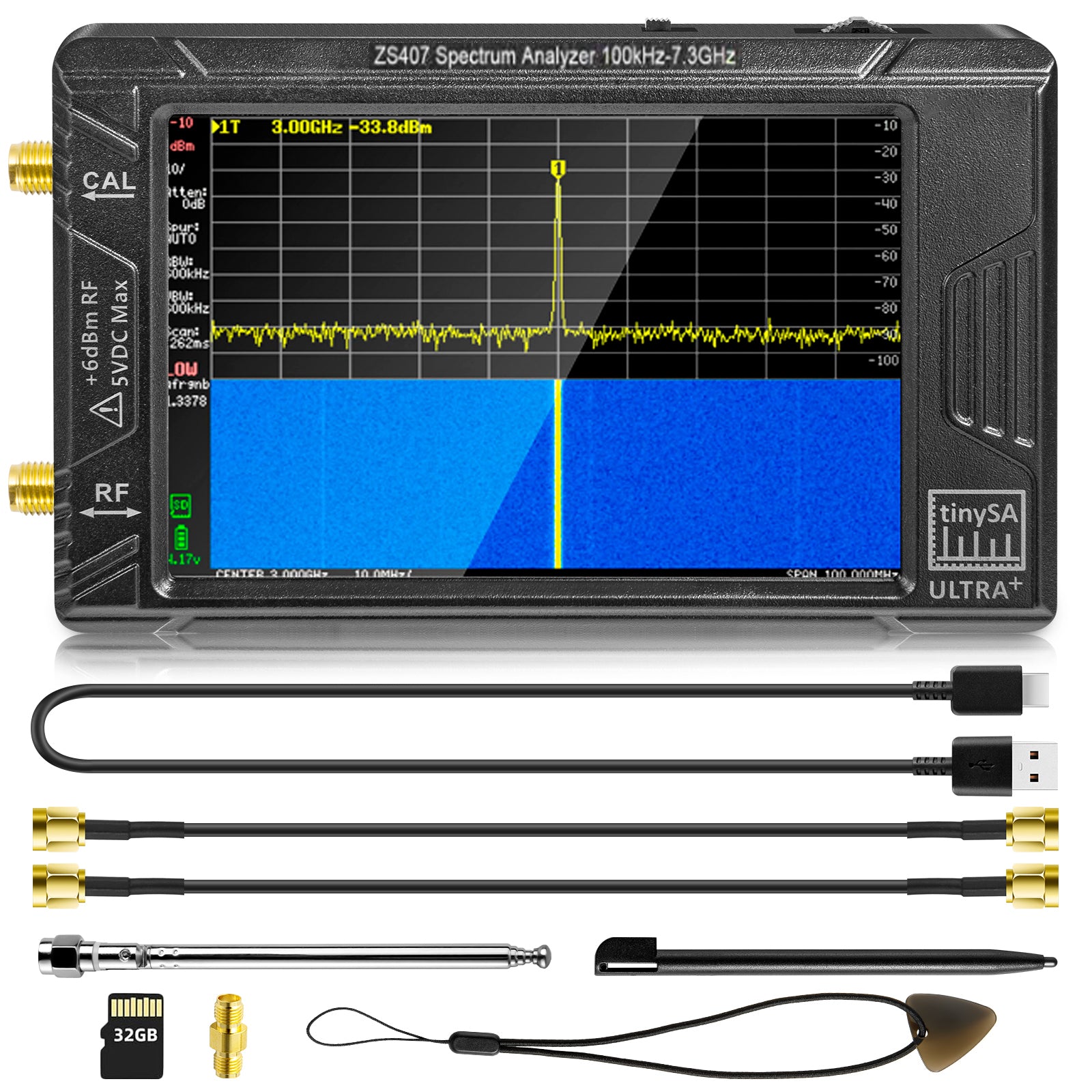

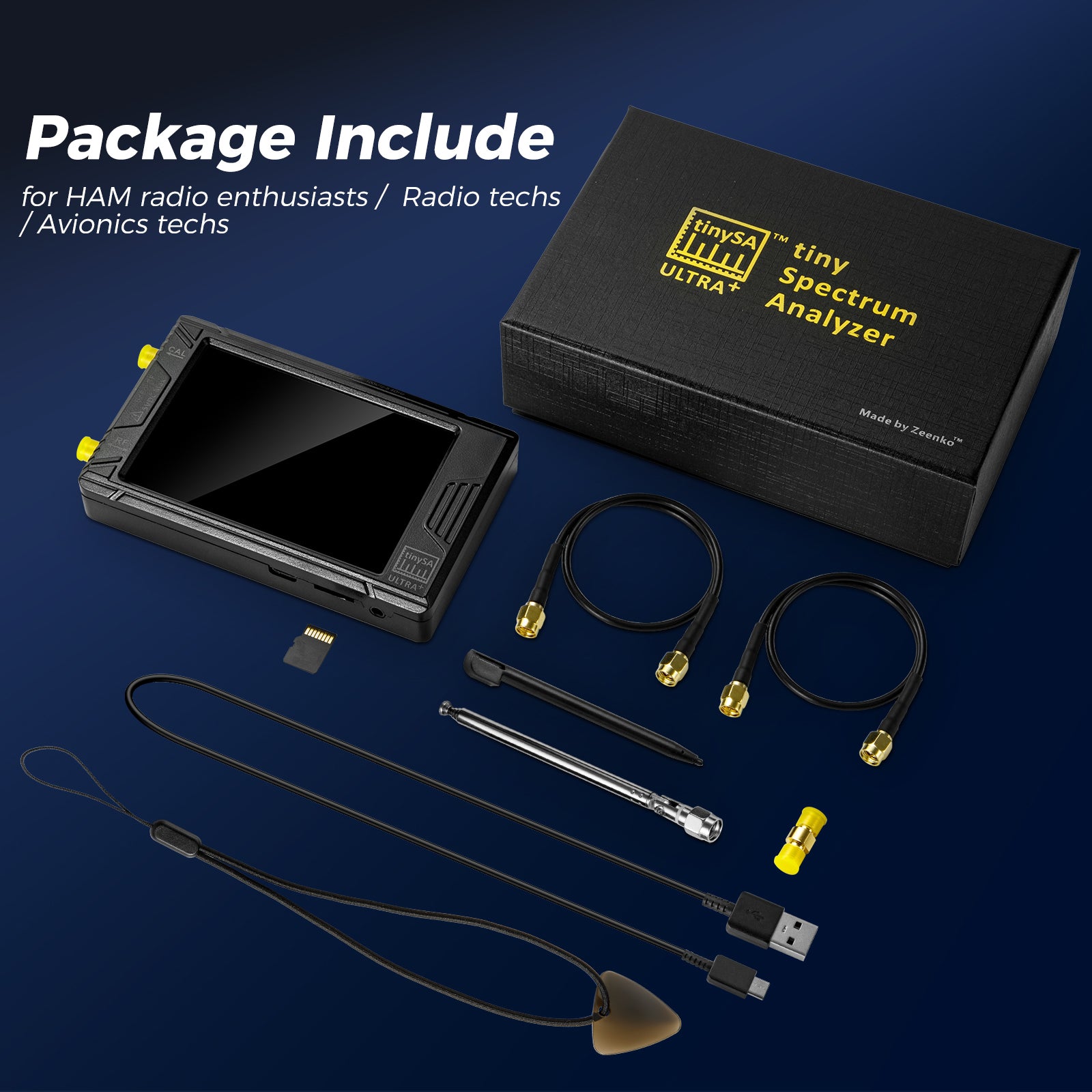

Paking List: 1x Tinysa ULTRA+ ZS407 Spectrum Analyzer (built-in 5000mah rechargeable battery); 1x 32GB Micro SD card (plugged in the host); 2x 30cm ALSR100 SMA cables; 1 x USB Type-C data cable; 1x SMA-SMA barrel connector; 1x TLanyard and touch plectrum; 1x Antenna with SMA connector; 1x stylus pen
